The compiler plugin and code generator

Compilation to native code happens in two steps. First, Scala code is compiled into Native Intermediate Representation by nscplugin, the Scala compiler plugin. It runs as one of the later phases of the Scala compiler and inspects the AST and generates .nir files. Finally, the .nir files are compiled into .ll files and passed to LLVM by the native compiler.

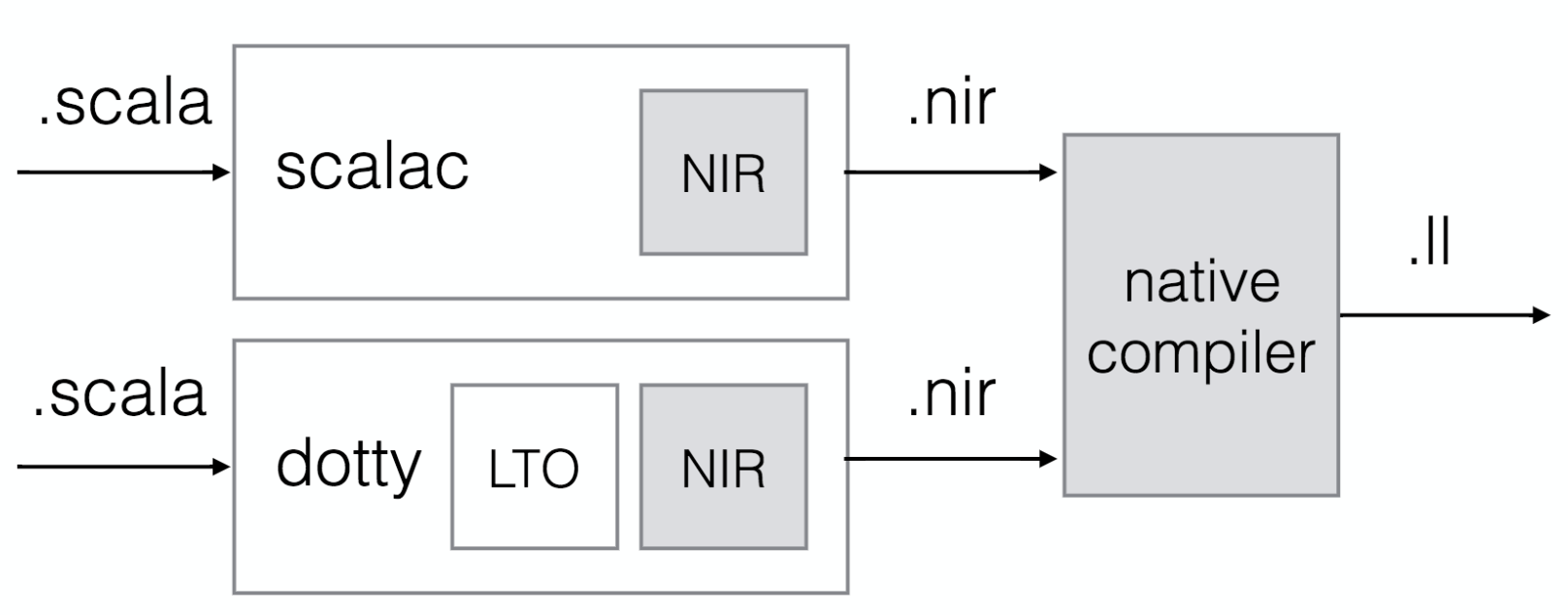

High-level overview of the compilation process.

Tips for working on the compiler

When adding a new intrinsic, the first thing to check is how clang would compile it in C. Write a small program with the behavior you are trying to add and compile it to .ll using:

clang -S -emit-llvm foo.c

Now write the equivalent Scala code for the new intrinsic in the sandbox project. This project contains a minimal amount of code and has all the toolchain set up which makes it fast to iterate and inspect the output of the compilation.

To compile the sandbox project run the following in the sbt shell:

sbt> sandbox/clean;sandbox/nativeLink

After compiling the sandbox project you can inspect the .ll files inside sandbox/target/scala-<version>/ll. The files are grouped by the package name. By default the Test.scala file doesn’t define a package, so the resulting file will be __empty.ll. Locating the code you are interested in might require that you get more familiar with the LLVM assembly language.

When working on the compiler plugin you’ll need to clean the sandbox (or other Scala Native projects) if you want it to be recompiled with the newer version of the compiler plugin. This can be achieved with:

sbt> sandbox/clean;sandbox/run

Certain intrinsics might require adding new primitives to the compiler plugin. This can be done in NirPrimitives with an accompanying definition in NirDefinitions. Ensure that new primitives are correctly registered.

The NIR code generation uses a builder to maintain the generated instructions. This allows to inspect the instructions before and after the part of the compilation you are working on has generated code.
